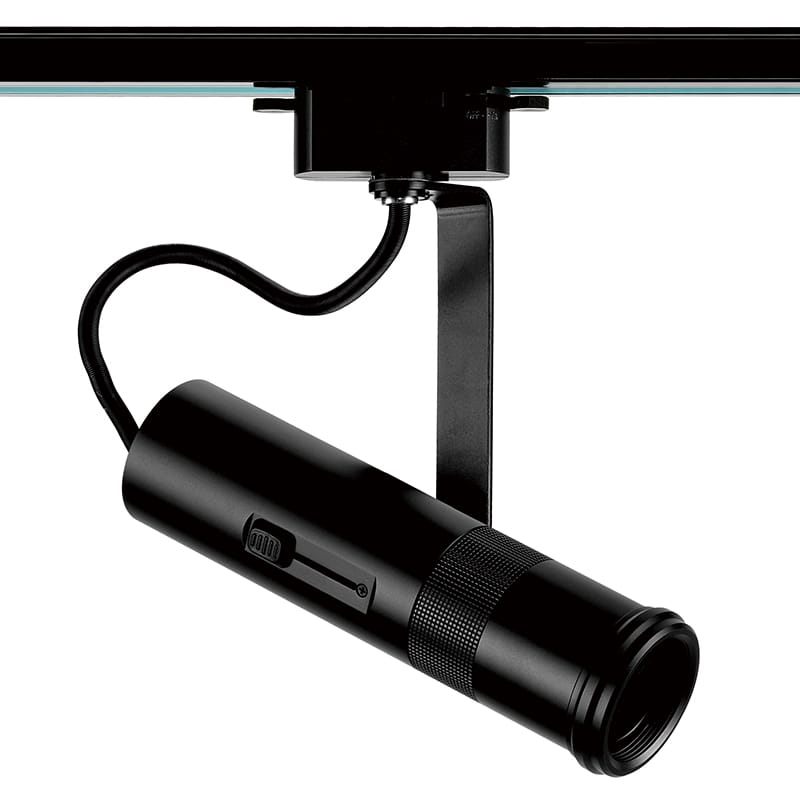

Blue Series 8615V3 Zoom Track Light

Power:15W Zoom angle:12°-55°

>

Features

It is a high-end lamp for cultural and public building space collections and key lighting

It is developed in cooperation with well-known lighting designers in many countries to make a consistent choice for designers and architects with lighting backgrounds in public cultural places.

  • Led Light Configurator

    Power

    Zoom angle

    CCT

    Ra

    SDCM

    Control

    Optical lenses

    Anti-glare

    Cut-off lens

    Optional installation

    Optional installation

    Lamp color


>

Information

The power is 15-25 watts, which can meet the high use of most space. The angle is zoom 9-50 degrees, and different angles can be selected according to different spaces and collections. Equipped with a variety of optical accessories and lenses, it can be used anywhere, regardless of the size, distance or space of the object.

Unique lighting experience

Dozens of beam angle types can be transformed, and optical accessories are available from 5 different beam angles. Equipped with soft light, diffusion filter, cut-off lens. With different focusing angles, it can produce a variety of lighting artistic effects such as soft and uniformity, stretching, wall washing, light interception and projection.

Excellent color and saturation

A variety of light and color options can be provided, and the quality of color presentation is crucial for museum applications. Used with the Luminus LED light source, the CRI is 97, the R9 is 96, the CQS value is 94.5, and the TM30 value is 94.1. It not only provides high CRI, but also improves color saturation. This makes the colors of paintings, collections, clothing or any other object more vivid than ever before.

Multiple control methods

It is compatible with DALI, 0-10V dimming,control modes, and can give designers a variety of control options to reduce emissions and save energy in public cultural buildings, illuminance control protection and sustainable development of collections.

>

Specifications

Product seriesBlue series
Model8615V3
LED Color (CCT)3000K/3500K/4000K/5000K
Optional RaRa>90 or Ra>95
SDCMSDCM<3
Optional installationThree or Four track ceiling
Whole light flux560lm-648lm
Power factor>0.9
Zoom angle12°-55°
Illuminance parameters12°at 9.84 ft(3 meters)Center illuminance >1100LX
Optional stretch lens30°×10° or 15°×5°
Wall washing lens60°×15°
Cut-off lensCut-off or Project logo
Illuminance parameters9° at 9.84 ft(3 meters)Center illuminance >2500LX
Optional stretch lens30°×10°/ 15°×5°
Wall washing lens60°×15°
Cut-off lensCut-off or Project logo
Power factor>0.9
Optional dimming0-10V | DALI | Casambi | DMX512
Optional dimming0-10V/DALI
Optional installationThree/Four-track or Ceiling
ColorWhite or Black or Customized colors
Lifetime50000h
