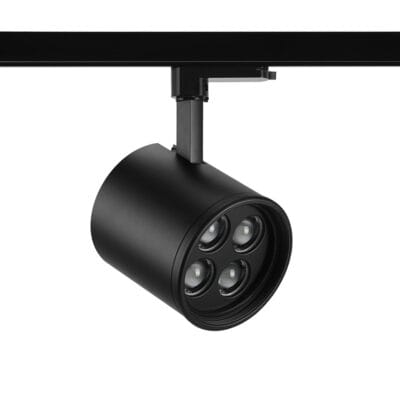

Wagner Seriess W-TL30-WGN Zoom Track Light

Power:30W Zoom angle:9°-50°

>

Features

key lighting for museums, art galleries, science and art exhibition hall

It is a high-end lamp for cultural and public building space collections and key lighting such as museums, galleries and art galleries, science and art exhibition halls. It is developed in cooperation with well-known lighting designers in many countries to make a consistent choice for designers and architects with lighting backgrounds in public cultural places.

  • Led Light Configurator

    Power

    Zoom angle

    CCT

    Ra

    SDCM

    Control

    Optical lenses

    Anti-glare

    Cut-off lens

    Optional installation

    Optional installation

    Lamp color


>

Information

The Topaz Expo is a high-quality, max. 15-watt track fixture that comes with a wide choice of accessories, making it perfect for museums, galleries, and high-end retail applications.

High-quality light beam
The ability to create a soft, homogeneous light beam, with a soft cut-off on the edges, makes the Topaz Expo stand out.

Easy interchangeable optical lenses
Changing a lens takes only seconds with a small free of charge CLS tool. No less than 5 different beam angles are available, 12°, 14°, 25°, 35° and 55°. These values are applicable for the Bridgelux LED modules. The beam angle is wider with the Xicato XOB LED modules.

Wide choice of LED light sources
Another great feature of the Topaz Expo is that it is available in a wide choice of LED light sources, with many colour temperatures available. This offers the flexibility to create the perfect lighting scheme for your needs. There is a choice of CRI~90 and CRI~98 Thrive (Bridgelux) or CRI>98 (Xicato) LED modules. The Tunable White LED modules, available in 1800K – 4000K and 2700K – 6500K are only available with control method DMX. Other LED colours are also available on request, minimum order quantity applies.

All possible dimming methods
Local Dim, Roto Dim, Casambi, DALI, DMX512, Casambi & Local dim in one adapter.

Wide choice of accessories
There is a wide choice of accessories available for the Topaz Expo, making it easy to adjust the beam angle and create the perfect lighting scheme for your space.

Number of DMX channels needed per LED colour

>

Specifications

Product seriesWagner series
ModelW-TL30-WGN
Power30W
LED color (CCT)3000K/3500K/4000K/5000K
Optional RaRa>90 or Ra>95
SDCMSDCM<3
Whole light flux1397lm-2095lm
Power factor>0.9
Zoom angle9°-50°
Illuminance parameters9°at 9.84 ft(3 meters)Center illuminance >4500LX
Optional stretch lens30°×10° or 15°×5°
Wall washing lens60°×15°
Cut-off lensCut-off or Project logo
Optional dimming0-10V/DALI/ Casambi/DMX512
Optional installationThree/Four-track or Ceiling
colorWhite or Black or Customized colors
lifetime50000h
